Wheel steered examples
Two rudders - single transmission steering system

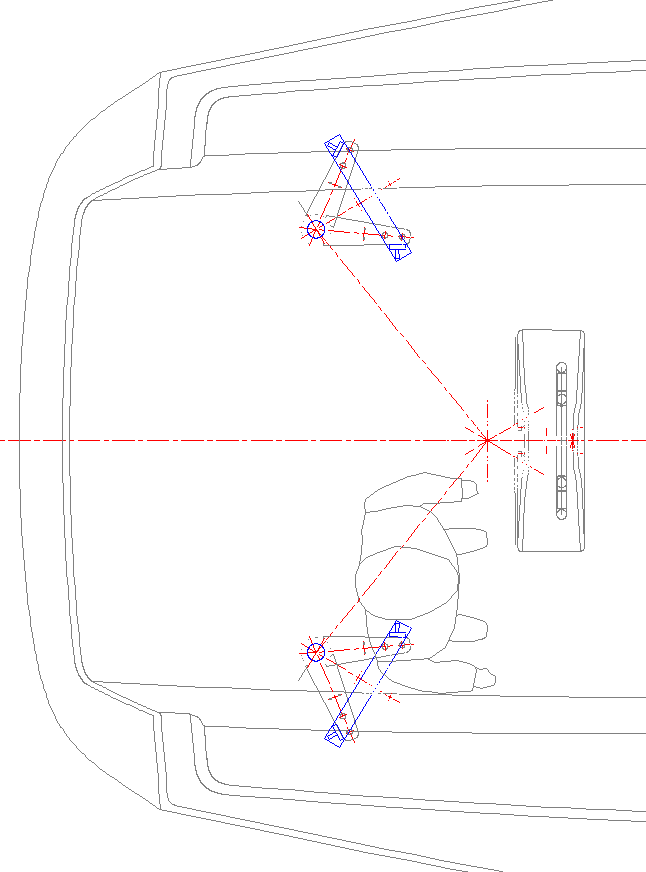

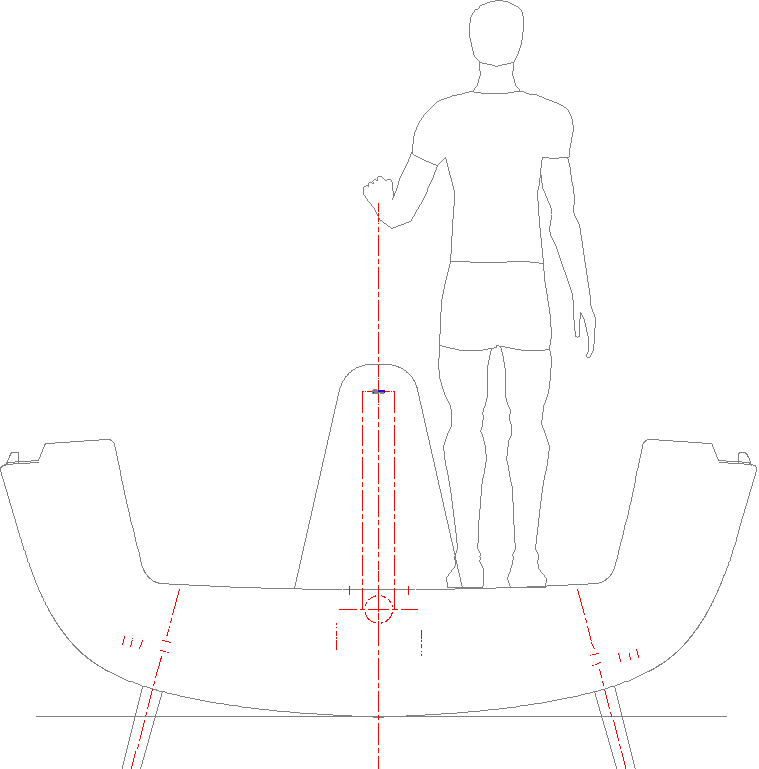

Example 190 shows the transmission system in combination with two rudders. This solution is the most simple solution when a yard make pedestal and not a standard pedestal (RP system) can be used.



Example 191 shows a twin rudder - transmission solution. On boats up to 42 foot, this can be done with the Rack and Pinion system, but on bigger boats a transmission system with a separate reduction gearbox should be used which drives both rudders. Please note the easy autopilot drive integration.
Please click on the image to open a 3D PDF model in a separate window. By clicking on it and holding the left button while moving, you can rotate the model.


Example 192 shows a centre cockpit boat (Pilot 46) with a transmission system in combination with two rudders. The transmission system drives one rudder and the second rudder is driven by a cross bar.


Example 193 shows the Satellite 44 Competition with a transmission system in combination with two rudders. It's a very compact and direct solution. Please note the integrated autopilot drive unit.

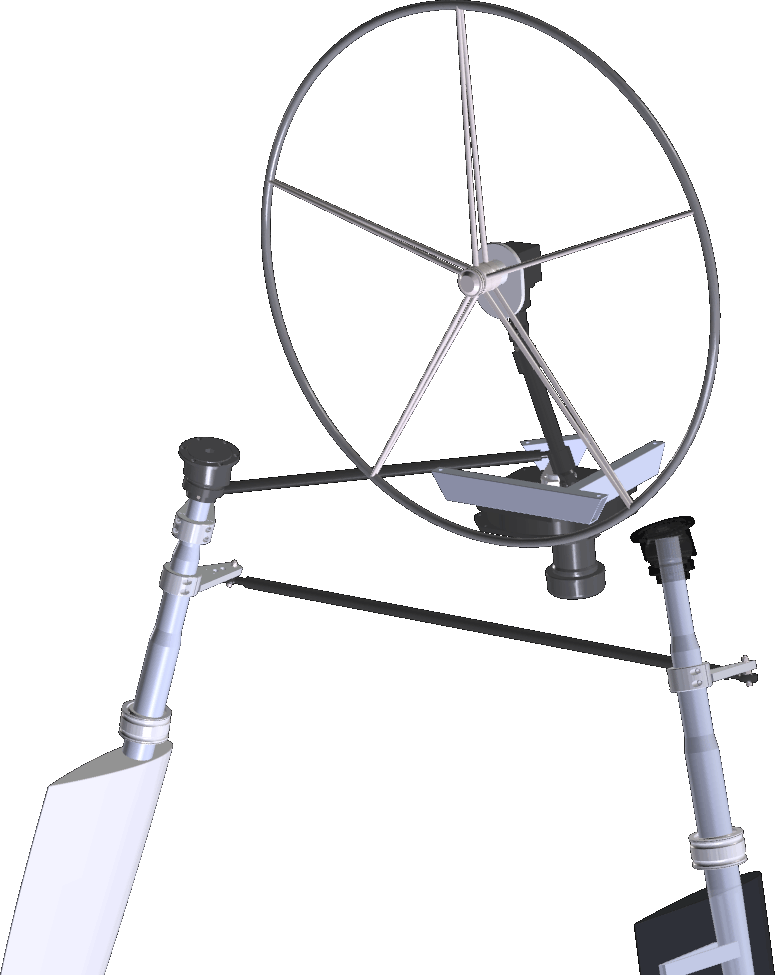

Example 194 shows the Breehorn 48 with a transmission system in combination with two rudders. It's a very compact and direct solution. Please note the integrated autopilot drive unit.
