Wheel steered examples
Three rudders - single transmission steering system


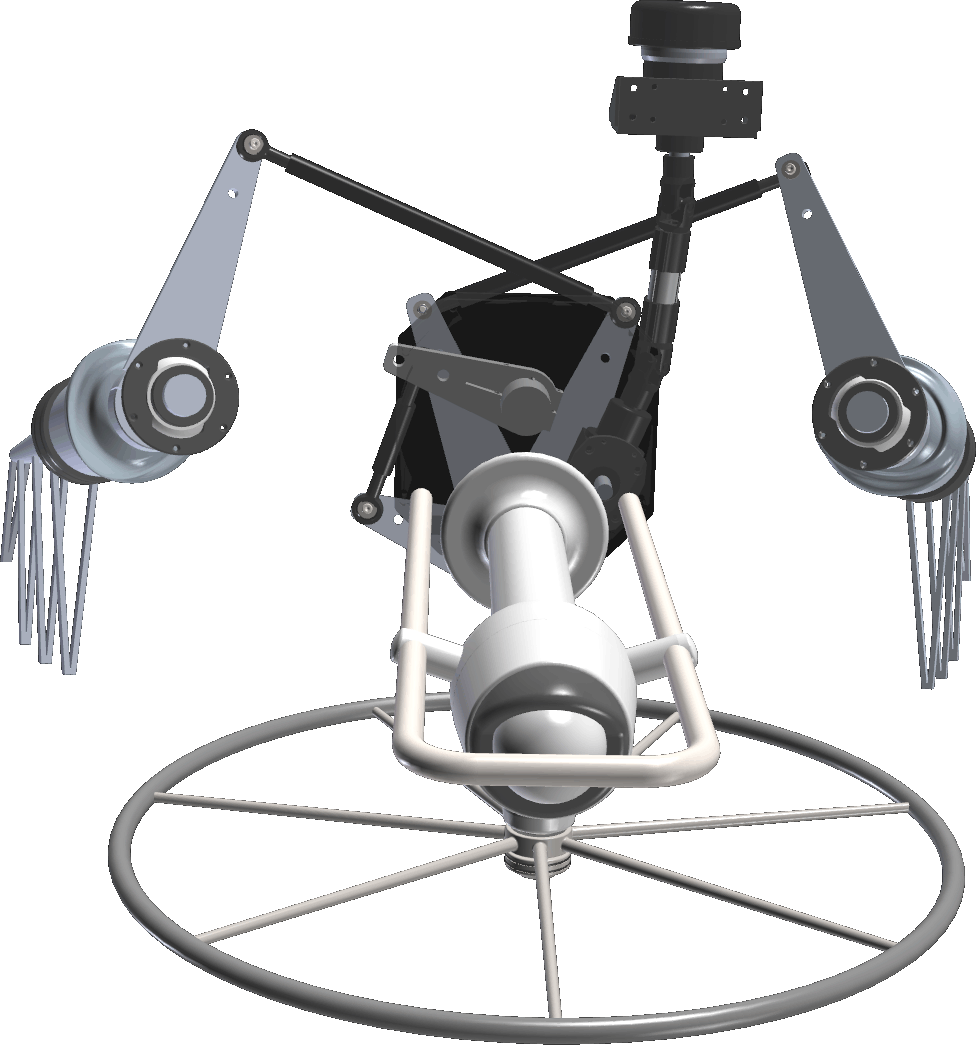

Example 200 shows the transmission system in combination with three rudders. As the two main rudders are outside of the prop wash, it's difficult to manoeuvre, so a third rudder in the prop wash is added. The flexible transmission system can drive all three rudder from one reduction gearbox.

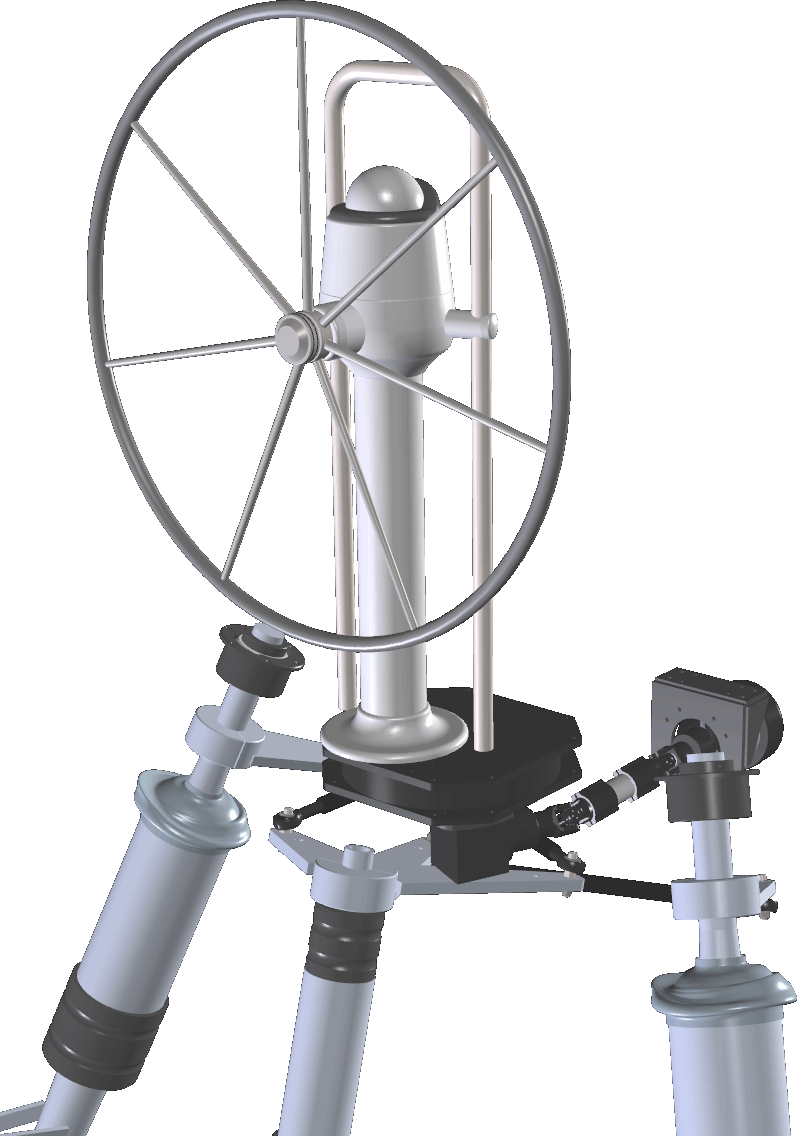

 Example 201 shows the transmission system in combination with three rudders. As the two main rudders are outside of the prop wash, it's difficult to manoeuvre, so a third rudder in the prop wash is added. The flexible transmission system can drive all three rudder from one reduction gearbox. As there was no room to integrate the drive unit on the reduction gearbox, it's remotely driven via a bevelbox and torque tube.
Please click on the image to open a 3D PDF model in a separate window. By clicking on it and holding the left button while moving, you can rotate the model.
