Jefa Tiller Levers |
Tiller levers for rack and pinion steering and autopilot drives |
The Jefa tiller levers are not casted but made from high strength
aluminium AlMgSi1. As a tiller lever has to endure high impact loadings
from for instance rudder stops, the material should not be easy breakable
like cast aluminium. The Jefa tiller levers are available in three boss
sizes depending on the rudder stock diameter. All Jefa tiller levers are
standard equipped with an autopilot pick up hole at 250 mm centres and
tap holes for the rudder feedback unit. A great help in specifying
tiller levers is out
tiller lever specification form. Please click on the picture for a larger view. |
Jefa Tiller Levers |
||
Part No. |
Description |
|
TLL035 | Tiller lever c/c250 mm, incl. fixed bore 35 mm "light duty" |
|
TLL040 | Tiller lever c/c250 mm, incl. fixed bore 40 mm "light duty" | |
TLL050 | Tiller lever c/c250 mm, incl. fixed bore 50 mm "light duty" | |
TLJ050 | Tiller lever c/c250 mm, incl bore, max. bore 50 mm | |
TLJ075 | Tiller lever c/c250 mm, incl bore, max. bore 75 mm | |
TLJ100 | Tiller lever c/c250 mm, incl bore, max. bore 100 mm | |
TLJ125 | Tiller lever c/c250 mm, incl bore, max. bore 125 mm | |
TLH125 | Heavy duty tiller lever c/c307 mm, incl bore, max. bore 125 mm | |
TLH200 | Heavy duty tiller lever c/c307 mm, incl bore, max. bore 200 mm | |
TLJPIN16 | 16 mm tiller lever pin | |
TLJPIN22 | 22 mm tiller lever pin | |
TLJPIN58 | 5/8" mm tiller lever pin for other steering systems | |
TLJPIN-D | TLJPIN set for twin mount draglink | |
TLAUTO | surcharge for additional autopilot arm connected to tiller cap | |
TLTWIST | surcharge for twisted tiller tail | |
TLJ-EXT | Surcharge for extended tiller lever | |
TLJCON | surcharge for conical bore | |
TLJadaptor | TLJ Adaptor Ø12,7xØ16mm (raymarine drive unit) | |
TLHLEVER | Extra heavy duty lever for autopilot |
Tiller specification form |
Please click this
to open the tiller lever specification form in Adobe PDF. This is a great
help to specify a tiller arm. Please don't try to fill in this form in your browser. First save it to your hard disk and open it with Adobe Acrobat. Fill in all the fields, then save it and mail it to us. |

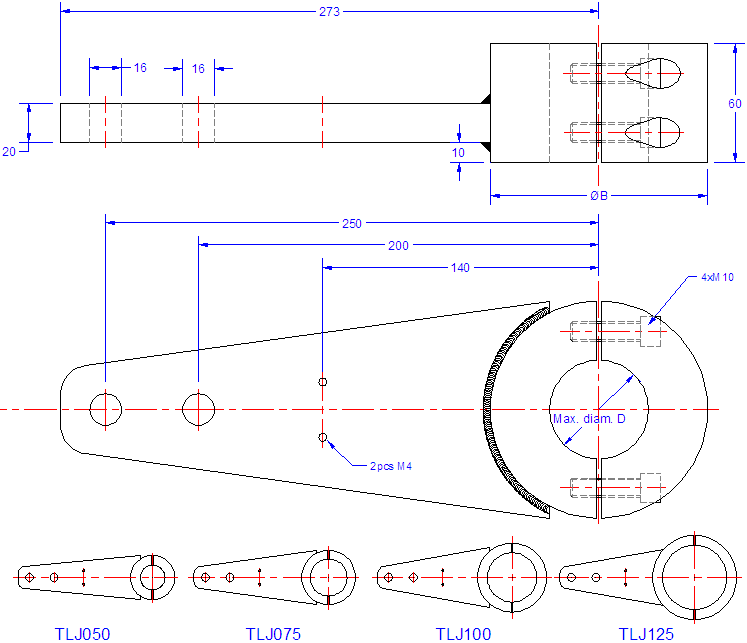

Jefa standard tiller lever dimensions |
Jefa Tiller Dimensions |
||
Part No. |
Max. diam. D | ØB |
TLJ050 |
50 | 90 |
TLJ075 |
75 | 110 |
TLJ100 |
100 | 140 |
TLJ125 |
125 | 170 |

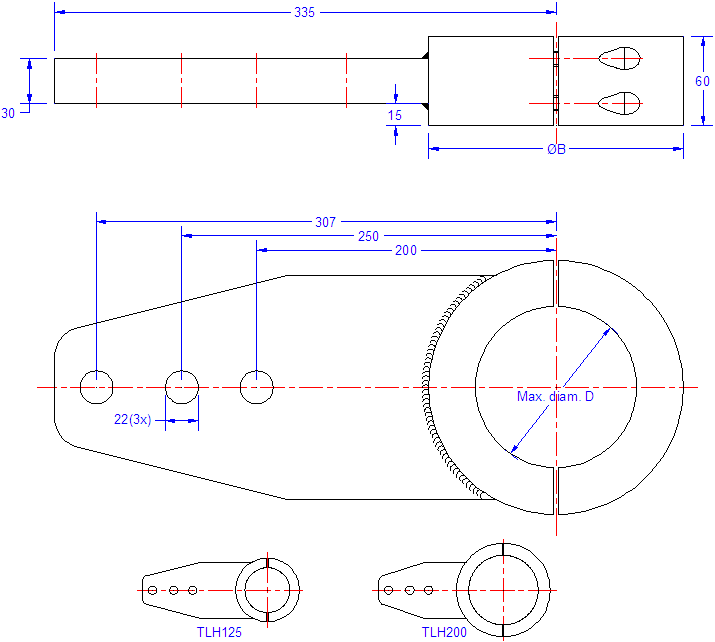

Jefa heavy duty tiller lever dimensions |
Jefa Tiller Dimensions |
||
Part No. |
Max. diam. D | ØB |
TLH125 |
125 | 170 |
TLH200 |
200 | 250 |

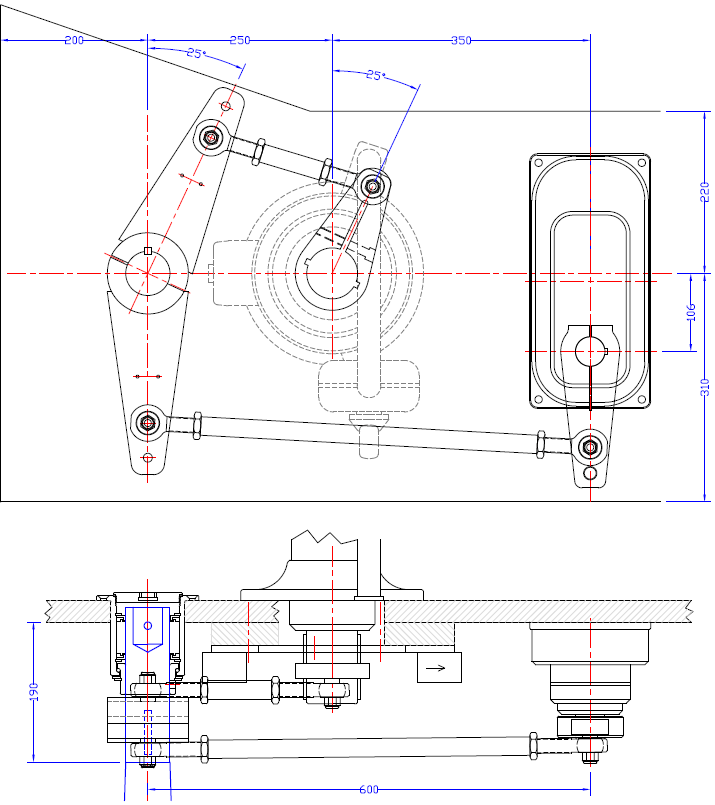

Tiller tails: |
Multiple tails can be connected to the tiller boss, at the same side or at the
cap side.

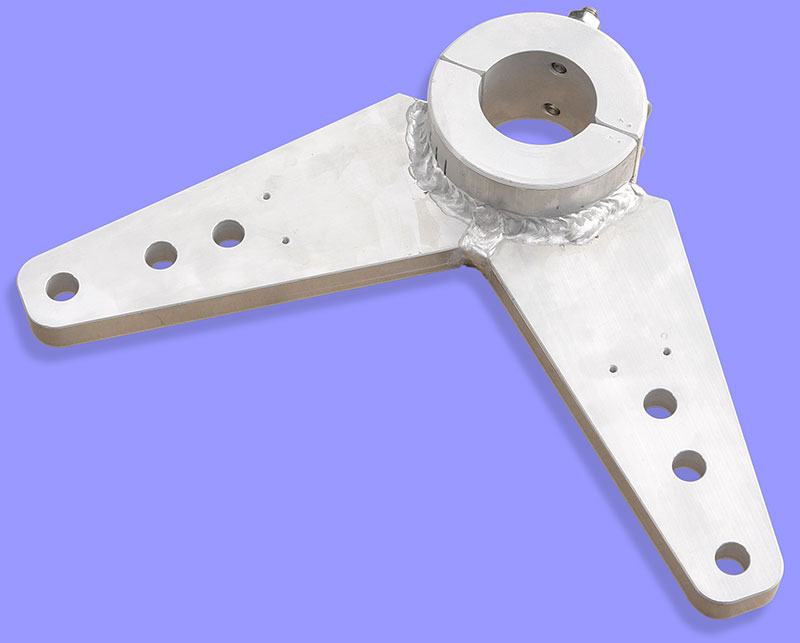

example of a tiller arm which combines the steering tail and autopilot tail on
one central boss.
