Jefa Steering has developed for X-Yachts a sporty A-frame pedestal set for the new X35. The pedestal combines a very stiff and light pedestal solution with a sensitive wire steering system and a innovative look. The front pedestal is easy removable making way for the removal of the steering wheel for transport of the boat. The steering quadrant is positioned in a chamber under the cockpit floor. The system is completed with a Ø1500 mm light weight aluminium steering wheel. The Jefa DD1 autopilot drive can be mounted under deck. More info, including a quotation, can be found on our FTP server . More info on the X35 can be found on the X-Yachts website.

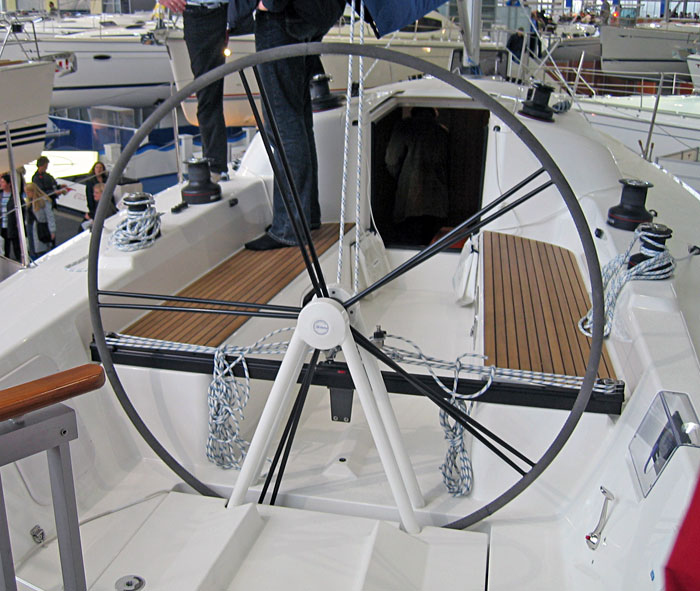

The A-frame pedestal in the cockpit

The A-frame pedestal in the cockpit

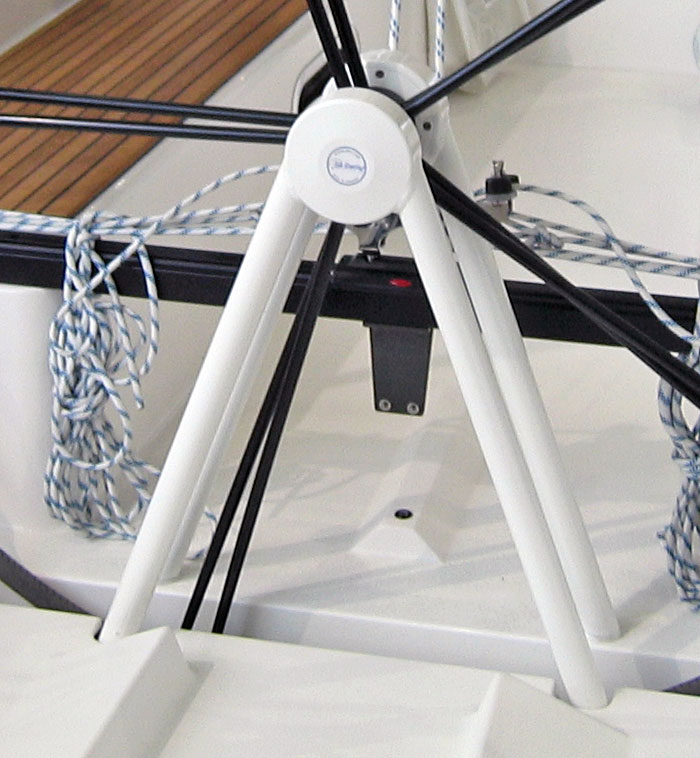

Detail view of the pedestal

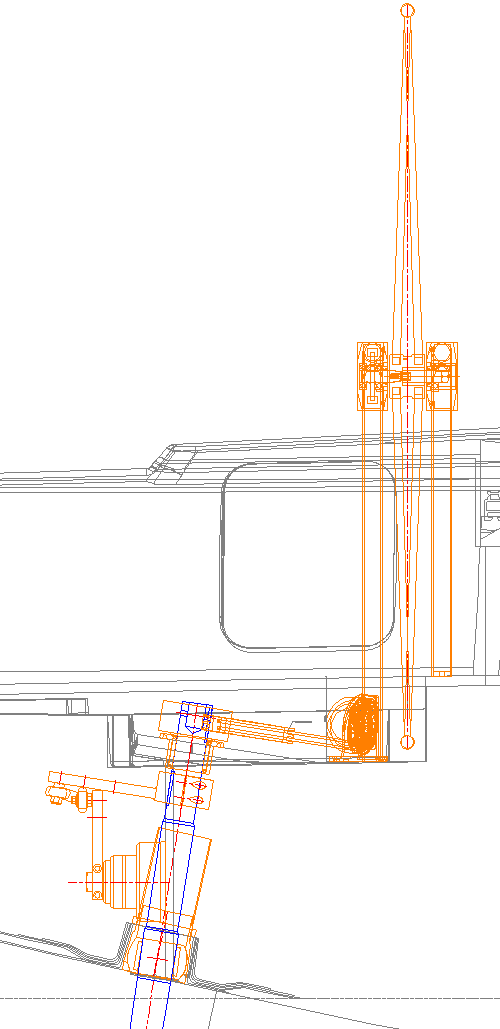

The cable routing.

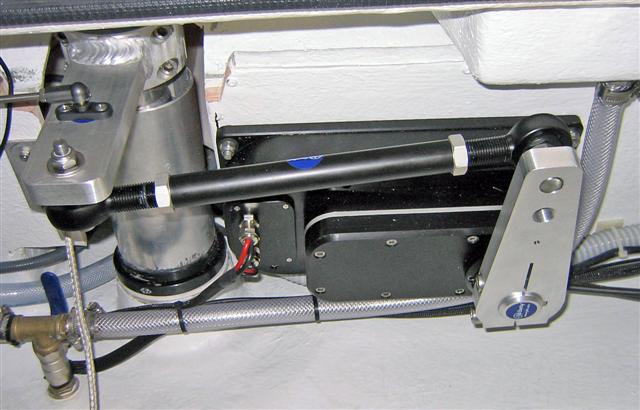

Side view of drive unit installation.

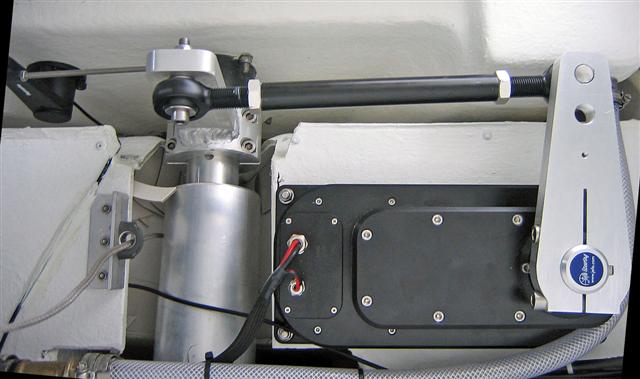

aft view of drive installation

A general solution based on this pedestal for under deck cable system.

The autopilot drive solution for the X35. See our FTP server
