| Jefa Steering has developed for Hanse Yachts a special rack and pinion system which is easy to integrate in the deck. For ease of installation, the complete steering system is in a chamber above deck. As the rudder top bearing and tiller lever are integrated, the complete steering system including autopilot drive can be setup and installed without the rudder stock fitted to the boat. This unique feature offers a large time gain in the boat construction. The autopilot drive for this boat is also a Jefa product and is a special watertight version. More info with pricing can be obtained a bit further down on this page. | |
|
|
|

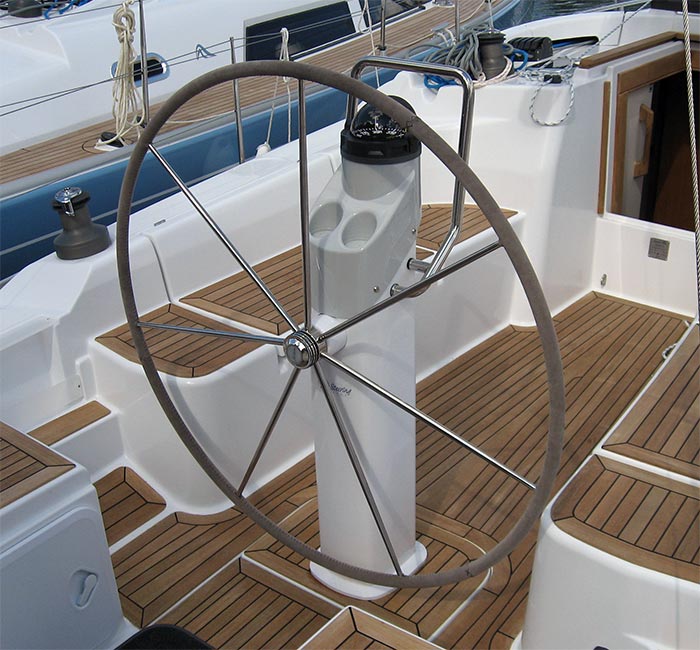

The finished product in the cockpit. |
|
|
|

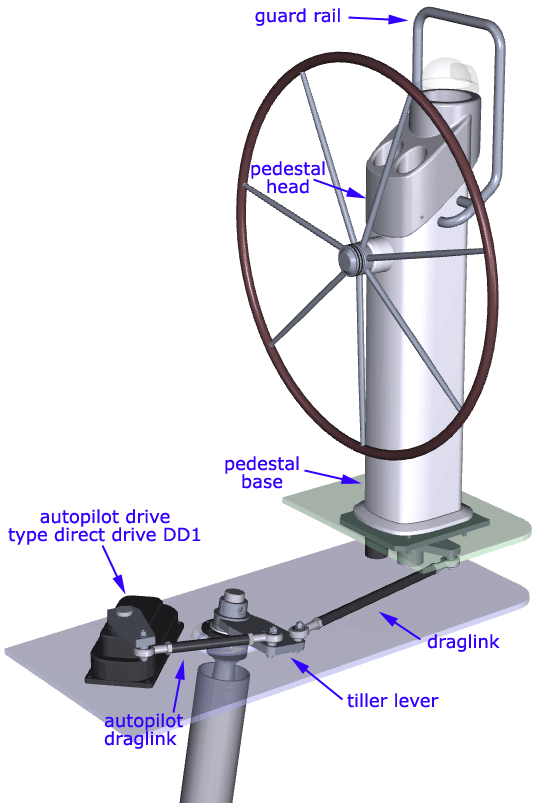

3D layout of the system showing the autopilot drive system. |
| Autopilot drive for Hanse 320-350-370 & 400: |
| No. | code | Description | price in € |
| 1 | A-TRS0050 | Drive unit complete for Hanse 320-400 | 1.927 |
| 1 | TRS0058 | Draglink 250-350 mm | 198 |
|
+ |
|||
| Total retail price excluding VAT. | € 2.125,- |
| Instrument solution 1: |
|
The first solution to add instruments to the steering position is to exchange the current guardrail for an extended version, creating more room above the compass and mount an instrument housing to the extended guardrail. Downside of this solution is the high instrument position which could block the view of the helmsman and the higher loading on the guardrail due to the additional length. In the below 3D presentation the extended guardrail is shown in combination with a DUO-POD. This model can be seen in 3 dimensions via Adobe Acrobat (V6>). Please click on button VIEW 3-D and click on the product and hold and move the mouse. |
|
|
|

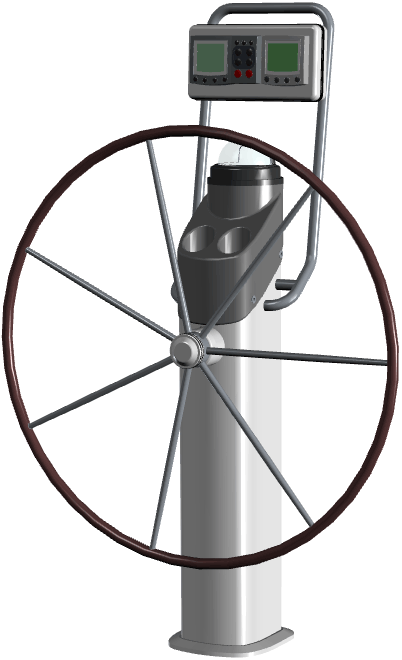

Extended guardrail with instrument pod type DUO. |
|
|
|

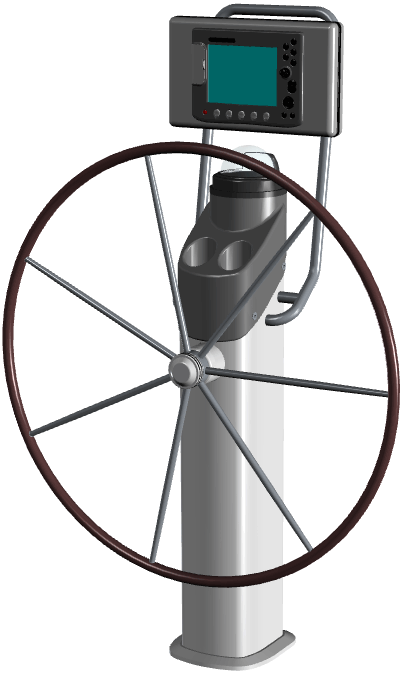

Extended guardrail with instrument pod type RADAR EP5. |
| Instrument solution 1 for Hanse 320-350-370 & 400: |
| No. | code | Description | price in € |
| 1 | TRS1013 | Extended guardrail for type 150 pedestal | € 151,- |
| 1 | INST-.... | Instrument housing to choice, see this page | € 258,- |
| Instrument solution 2: |
|
The second solution to add instruments to the steering position is to exchange the current pedestal head for a smaller flush version, creating more room above the compass and mount an instrument housing to the standard existing guardrail. In the below 3D presentation the extended guardrail is shown in combination with a DUO-POD. This model can be seen in 3 dimensions via Adobe Acrobat (V6>). Please click on button VIEW 3-D and click on the product and hold and move the mouse. |
|
|
|

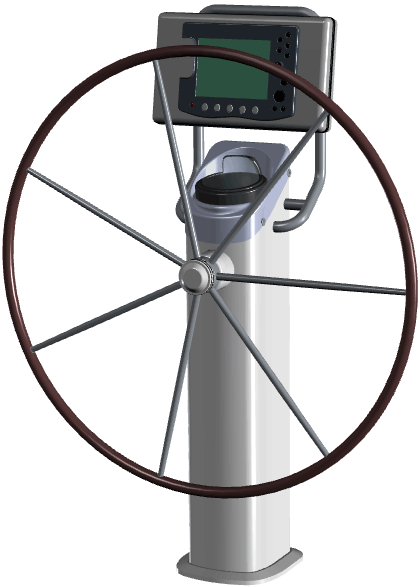

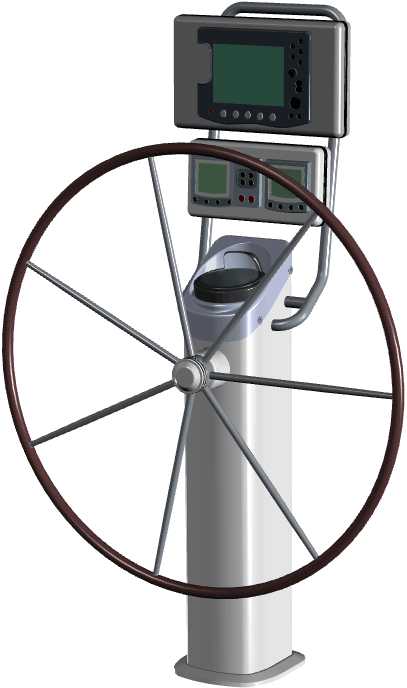

Small head version with standard guardrail and instrument pod type DUO. |
|
|
|
Small head version with standard guardrail and instrument pod type RADAR EP5. |
| Instrument solution 2 for Hanse 320-350-370 & 400: |
| No. | code | Description | price in € |
| 1 | RP150HD1 | Retrofit small head for type 150 pedestal | € 134,- |
| 1 | INST-.... | Instrument housing to choice, see this page | € 258,- |
| Instrument solution 3: |
|
The third solution to add instruments to the steering position is to exchange the current pedestal head for a smaller flush version, creating more room above the compass and replace the standard guardrail for an extended version. This way enough room is created to mount two instrument pods above each other. In the below 3D presentation the extended guardrail is shown in combination with a DUO-POD and a RADAR pod type EP5. This model can be seen in 3 dimensions via Adobe Acrobat (V6>). Please click on button VIEW 3-D and click on the product and hold and move the mouse. |
|
|
|
Small head version with extended guardrail and instrument pod type DUO and RADAR EP5. |
| Instrument solution 3 for Hanse 320-350-370 & 400: |
| No. | code | Description | price in € |
| 1 | RP150HD1 | Retrofit small head for type 150 pedestal | € 134,- |
| 1 | TRS1013 | Extended guardrail for type 150 pedestal | € 151,- |
| 1 | INST-.... | Instrument housing to choice, see this page | € 258,- |
| 1 | INST-.... | Instrument housing to choice, see this page | € 258,- |
|
+ |
|||
| Total retail price excluding VAT. | € 801,- |
| Instrument solution 4: |
|
The fourth solution to add instruments to the steering position is to exchange the current pedestal head for a bigger GRP version, creating room for a plotter, instruments and buttons. |
|
|
|

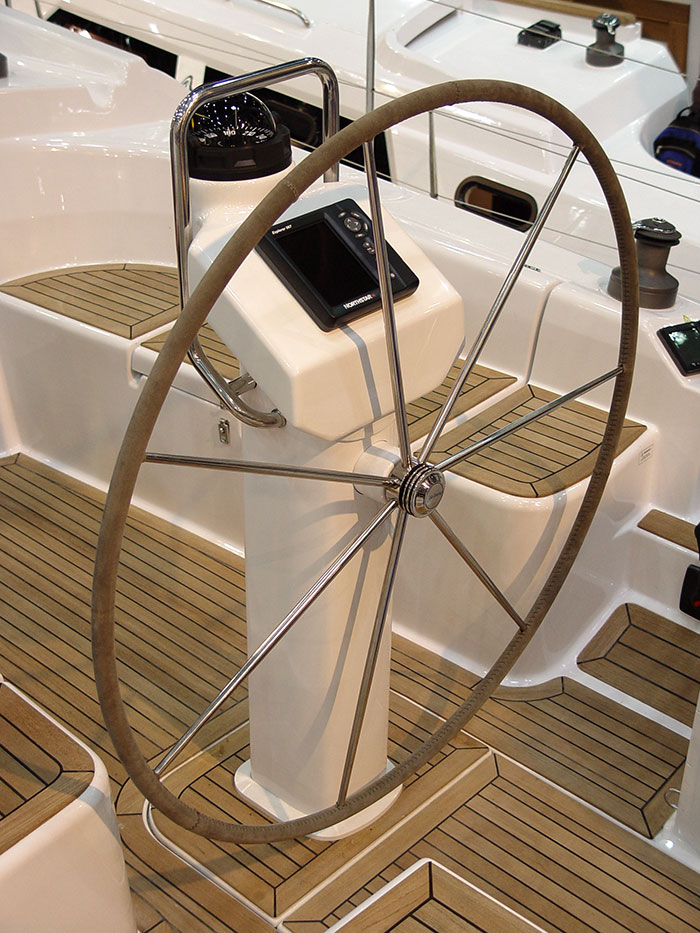

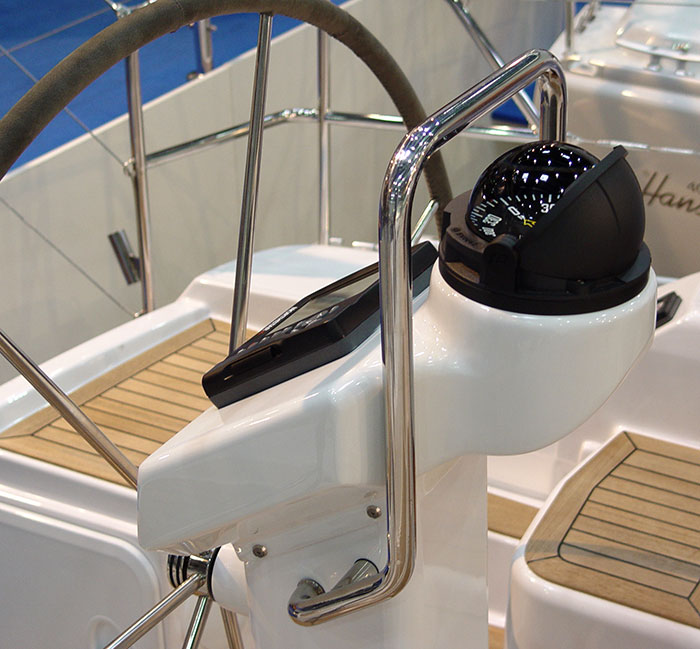

Type 150 pedestal with large head. |
|
|
|

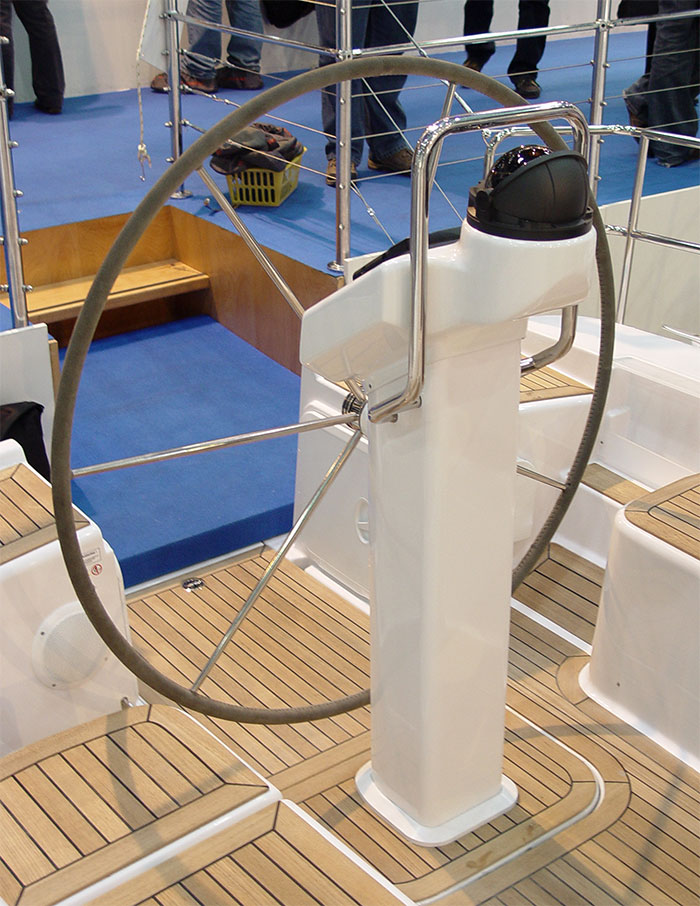

Type 150 pedestal with large head. |
|
|
|
Type 150 pedestal with large head. |
|
|
|

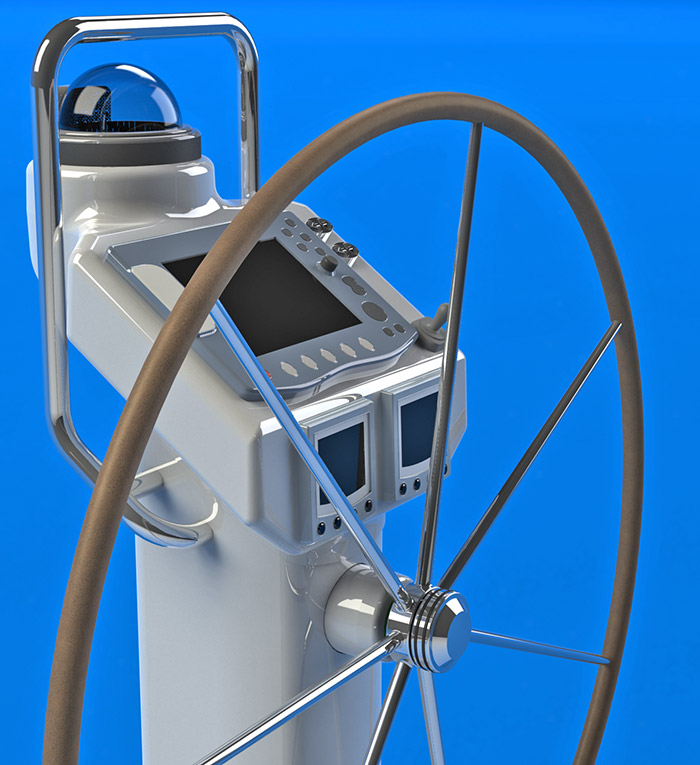

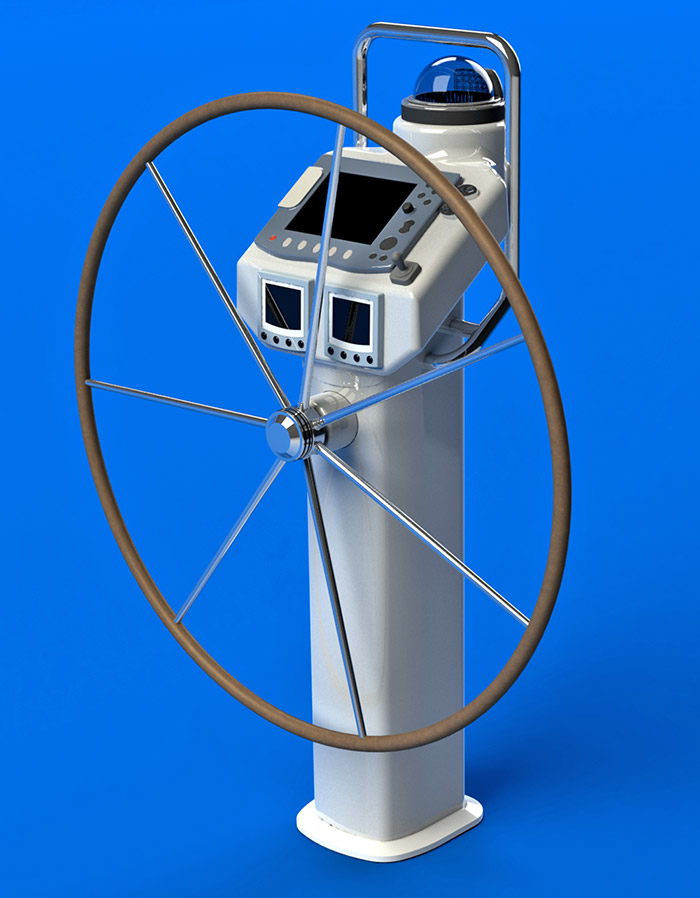

Type 150 pedestal with large head, plotter instruments and switches. |
|
|
|
Type 150 pedestal with large head, plotter instruments and switches. |
|
|
|

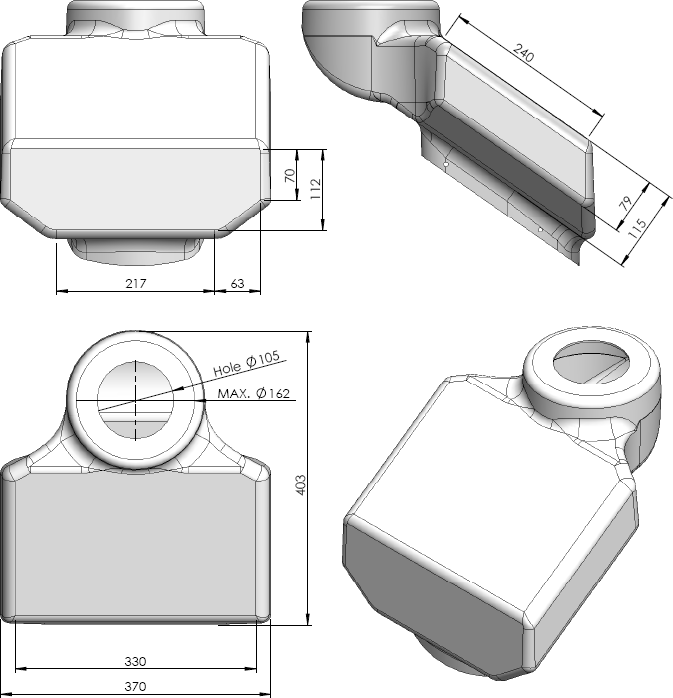

Main dimensions |
| Instrument solution 4 for Hanse 320-350-370 & 400: |
| No. | code | Description | price in € |
| 1 | HEAD150-3R | Retrofit 150 type HD3 large pedestal head | € 276,- |
|
+ |
|||
| Total retail price excluding VAT. | € 276,- |
