Jefa Carbon Steering Wheels

Carbon wheels
Normally carbon wheels are produced in bits (separate spokes and rim parts) and glued together to make the complete wheel. Jefa carbon wheels are produced in a very big moulding in one go using vacuum technology. The big advantage is a much lighter, stiffer and stronger construction as the carbon fibres overlap in the complete wheel without any joints. The 2,1 Kg 900 mm, the 2,3 Kg 1000 mm, the 2,6 Kg 1100 mm, the 4,5 Kg 1700 mm and the 4,8 Kg 1900 mm carbon wheels are mostly available ex stock.The Jefa carbon wheels are CE approved.

Please click on the pictures for a larger view and put the mouse on them to see the diameter.

 1700 mm carbon wheel (click for larger view)

1100 mm carbon wheel spoke (Click for larger view )

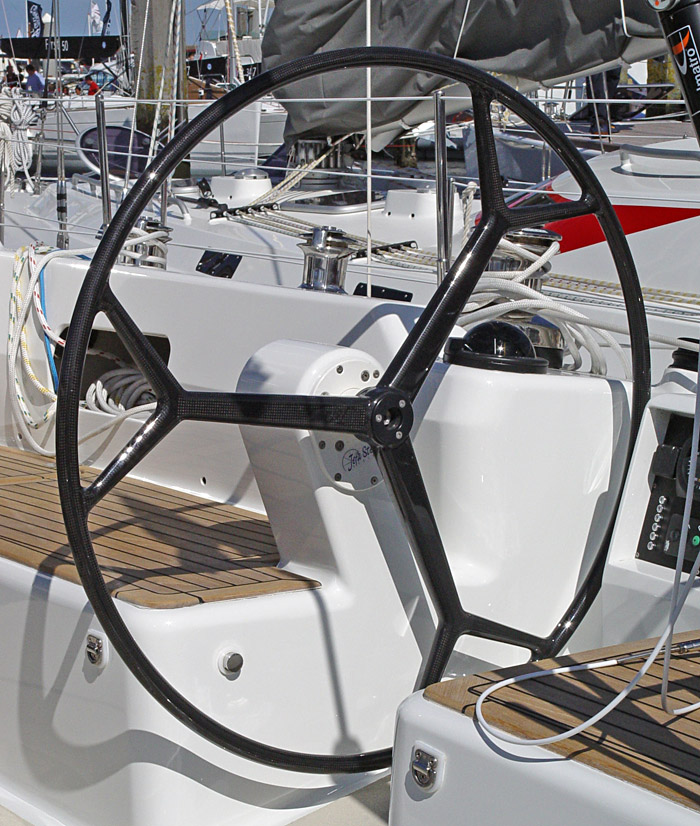

 1100 mm carbon wheel (Click for larger view ) Hub of 1700 mm carbon wheel (Click for larger view )

Carbon steering wheels

Part No.

Description

WHC0900

Carbon wheel 900 mm

WHC1000

Carbon wheel 1000 mm

WHC1100

Carbon wheel 1100 mm

WHC1700

Carbon wheel 1700 mm

WHC1900

Carbon wheel 1900 mm

DISENGC

Wheel disengagement unit for carbon wheels


Ø1100 mm carbon wheel on X 50


Ø1100 mm carbon wheel on Contest 50


Ø1100 mm carbon wheel on Atlantic 48


Ø1100 mm carbon wheel on X 50

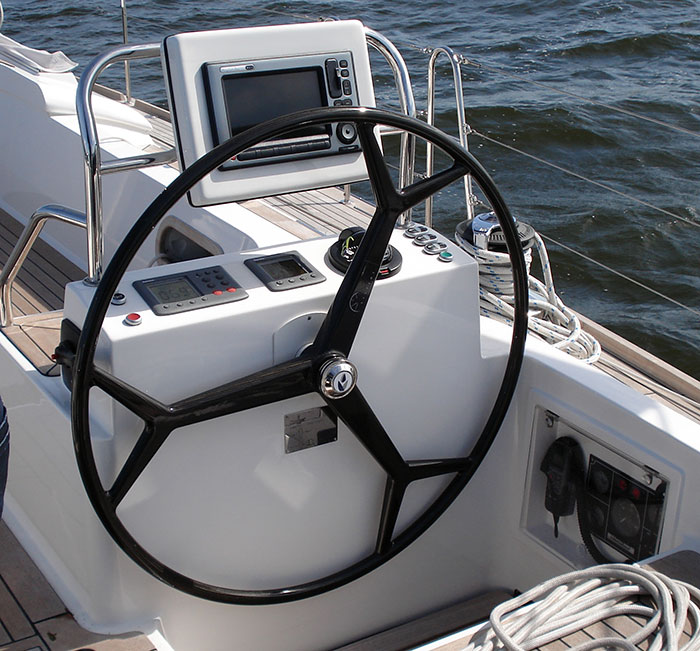

Ø1000 mm wheel on Contest 57


Ø1700 mm carbon wheel on IMX40


Ø1700 mm carbon wheel on Marine Sport 36

The Jefa steering wheel tapers
All wheels up to 1500 mm have the 25 mm steering shaft taper, from 1600 mm diameter onwards the wheels have the 30 mm taper. All pedestals have the 25 mm shaft and some bulkhead steerers (BS30) and transmission steering boxes are build with the 30 mm steering shaft.
Cone adapter for hydraulic pumps
All wheels up to 1500 mm can be fitted with an adapter cone for a hydraulic pump with the "small cone" as in below sketch.

Cone adapter

Part No.

Description

WHSADAP

Adapter petit cone - 8,28 degr.
Wheel protecting covers
Wheel protection covers are available for wheel from 1000 to 1100 mm. They are made from neoprene, water and sun resistant and available in the color black.
Example of a 1000 mm wheel cover.
click on the picture for a larger view		 Example of a 1000 mm wheel cover.
click on the picture for a larger view

Jefa Wheel Covers

Part No.

Description

WC1000

Wheel cover for Ø1000 mm steering wheel

WC1100

Wheel cover for Ø1100 mm steering wheel
Quick release wheel nut for fast wheel removal
The quick release nut is very handy when the steering wheel obstructs the free passage in the cockpit. It replaces the standard wheel nut and can be operated with a standard winch handle. This way the steering wheel can be quickly removed when not needed.

Quick Release Steering Wheel Nuts

Part No.

Description

NQT58

Quick release wheel nut for tandem and carbon wheels
The Jefa wheel disengagement unit

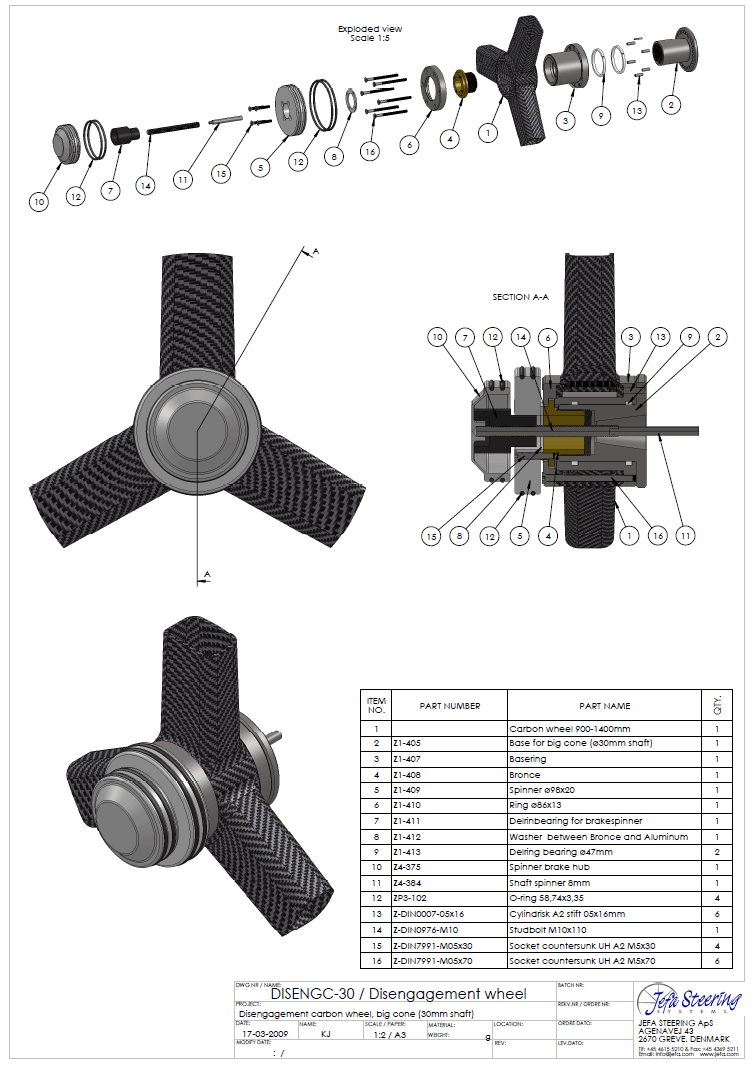

The carbon wheels can be fitted with a unit to prevent the wheel from rotating while under autopilot cruise. This steering wheel disengagement unit is only available for stainless tandem wheels and carbon wheels as the wheel hub of these type wheels is big enough to accommodate the mechanism. By rotating the black knob, the wheel is pulled backwards and 5 off pins disengage from a flange which is attached to the steering shaft. The wheel disengagement unit is a part of the steering wheel and not of the steering system. This means it can be fitted on existing steering systems. Please click on the picture for a larger view. (Shown is the stainless tandem wheel version, the carbon wheel version is similar) Click for larger view

Tandem wheel disengagement unit

Part No.

Description

DISENGC

Wheel disengagement unit for carbon wheels
